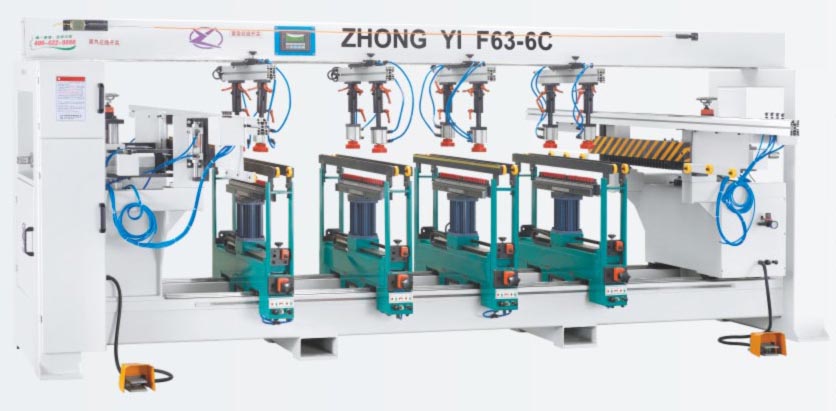

F63-6C 排鉆機(jī)
Features
1. Cylinder positioning .
2. Driller magazine automatically 90? turn over.
3. Touch screen control.
4. Efficiency and easily operation.
Technical Specs
◎Power source:380V/50Hz/3HP+N
◎Air pressure:0.6-0.8Mpa
◎Panel length:250-2500mm
◎Panel thickness:10-60mm
◎Panel width:150-1800mm
◎Driller magazine: 4 vertical+2 horizontal
◎Driller bits: 6x21=126 pcs
◎Driller bits distance:32mm
◎Panel positioning feed in/out direction:8 movable cylinders
◎Drilling speed:3000r/min.
◎Drilling depth:60mm
◎Max. Drilling diameter:15mm
◎Total power:9KW
◎Machine size:4600x1200x1680mm
◎Machine weight:1800kg
